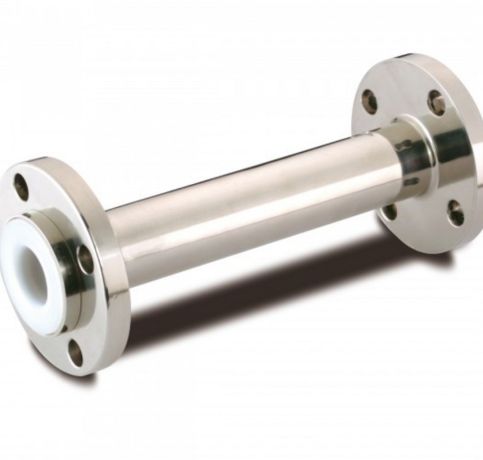

Bhavesh PTFE Lined Pipe is a top-grade manufacturer and supplier of FEP, PTFE and PFA lined pipes in Hyderabad that provides high-performance solutions for corrosive and high-temperature services. Our SS 304 PTFE lined pipes provide great corrosion resistance. MS PFA lined pipes have vent holes to detect leakage for safety and effectiveness. Established in Hyderabad, we provide high-quality, long-lasting pipes with smooth finish for maximum performance.
PTFE lining pipe is a tough, chemically inert coating on pipes and equipment for safeguarding against chemical corrosion and extreme temperatures. It has superior chemical resistance and is therefore best for processing aggressive chemicals such as acids, bases and solvents. PTFE-lined pipes can sustain temperatures of up to 260°C (500°F) and have a smooth, anti-stick surface for enhanced flow efficiency. Made of polytetrafluoroethylene (PTFE) resin, sometimes supported by stainless steel, PTFE lining provides long-term durability and reliability in aggressive environments.
Size : 25 NB to 450 NB
Pipe Material : 106 grade B Sch 40 from 25 NB to 150 NB
Flanges Used : ASTM A 105/IS 2062
Hydro Test : at 29.8 Kg/cm2
Spark Test : 15 KVA
PIPE : 1. SEAMLESS CS ASTM A106 GR.B, SCH.-40, 2. ASTM A312 TP 304, SCH.-40
FLANGE : 1. IS 2062 / ASTM A105, 2. ASTM A351 GR. CF8
Lining Material Options
PFA – ASTM D 3307
FEP – ASTM D 2116
ETFE – ASTM D 3159
PVDF – ASTM D 3322
PP – ASTM D 4101
HDPE
Bhavesh PTFE Lined Pipe is a leading supplier of PTFE Lined Pipes in Hyderabad, Hyderabad, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| SIZE | Min. Avail Length with flange | Max. Length Avail. | Flange Stopper Thik “J” | Wgt per mtr length | Wgt + ~ 1 mtr | |
| NB | INCH | (mm) | (mm) | (mm) | (Kg) | (Kg) |
| 25 | 1″ | 100 | 6000 | 10 | 5.5 | 3.3 |
| 40 | 1.5″ | 100 | 6000 | 10 | 8.5 | 5.5 |
| 50 | 2″ | 100 | 6000 | 10 | 11.0 | 6.5 |
| 80 | 3″ | 110 | 6000 | 10 | 20.0 | 13.0 |
| 100 | 4″ | 110 | 6000 | 10 | 30.0 | 18.5 |
| 150 | 6″ | 125 | 6000 | 10 | 48.7 | 33.8 |
| 200 | 8″ | 125 | 6000 | 12 | 75.5 | 52.0 |
| 250 | 10″ | 140 | 3000 | 12 | 98.5 | 62.5 |
| 300 | 12″ | 150 | 3000 | 12 | 120.0 | 82.0 |
| 350 | 14″ | 200 | 3000 | 12 | 157.0 | 84.0 |
| 400 | 16″ | 200 | 1500 | 12 | 192.0 | 95.6 |
| 450 | 18″ | 210 | 500 | 15 | 214.0 | 108.0 |
| 600 | 24″ | 240 | 500 | 15 | 335.0 | 145.0 |
Superior protection against corrosive chemicals.
Reduces friction and enhances flow efficiency.
Withstands high temperatures (up to 260°C) and high pressures.
More affordable than expensive alloys, offering similar performance.
PTFE lined pipes are used in industries handling corrosive chemicals, high temperatures, or aggressive fluids, such as chemical processing, pharmaceuticals, and oil & gas.
Common base materials include SS 304, SS 316, and MS (Mild Steel), which are then lined internally with PTFE, PFA, or FEP for enhanced chemical resistance.
Yes, we offer customized PTFE, FEP, and PFA lined pipes based on client requirements, including variations in length, diameter, and flange types to suit specific industrial applications.
PTFE lined pipes can withstand temperatures up to 260°C (500°F) and are designed to perform under various pressure conditions, depending on the pipe material and lining thickness.
Yes, all MS PFA lined pipes are provided with vent holes for easy leak detection. We follow stringent quality control protocols to ensure defect-free products.
We are the leading Manufacturer and Supplier of Bhavesh PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Hyderabad, Hyderabad.
