PTFE Lined Butterfly Valve

Bhavesh PTFE Lined Pipe is a leading manufacturer and supplier of PTFE, FEP, and PFA Lined Butterfly Valves with its Head Office in Hyderabad, Telangana, and is well known for offering corrosion-resistant and high-performance lined valves. PTFE-coated butterfly valves have a PTFE-coated disc to offer chemical resistance and ensure smooth operation. PTFE seal butterfly valves incorporate a PTFE-lined seat to achieve a close, leak-free seal, well suited to handling aggressive media. Both types work by rotating the disc 90 degrees to control flow, with reliable sealing and longevity in abusive industrial services.



PTFE Coated Butterfly Valve Manufacturer in Hyderabad, PTFE Seal Butterfly Valve Supplier in Telangana, PFA Lined Butterfly Valve Exporter in Hyderabad, SS 304 PTFE Lined Butterfly Valve Stockist in Telangana, Lined Valves Distributor in Hyderabad, FEP Lined Butterfly Valve Manufacturer in Hyderabad, Polytetrafluoroethylene Lined Butterfly Valve Supplier in Telangana, PTFE Lined Stainless Steel Butterfly Valve Exporter in Hyderabad, PTFE Butterfly Valve Stockist in Telangana, Manufacturer of Comprehensive Range PTFE Line Butterfly Valve in Hyderabad

Table of Contents

What is PTFE Lined Butterfly Valve?

A PTFE Coated Butterfly Valve is a butterfly valve lined with a coat of PTFE (Polytetrafluoroethylene), FEP (Fluorinated Ethylene Propylene), or PFA (Perfluoroalkoxy) for increased chemical resistance. The lining protects the valve from chemicals, wear, and corrosion under severe conditions, making it appropriate for processing corrosive fluids in chemical processing, pharmaceuticals, and food processing industries. It offers reliable sealing and enhanced durability, offering effective fluid control in harsh conditions.

PTFE Lined Valve

Largest Supplier of PFA Lined Carbon Steel Double Offset Butterfly Valve in Hyderabad, PTFE Lined Bronze Lug Type Butterfly Valve Manufacturer in Telangana, PFA Stainless Steel Wafer Type Butterfly Valve Price , PTFE Lined Stainless Steel Butterfly Valve Distributor in Telangana, Polytetrafluoroethylene Butterfly Control Valve Stockist in Hyderabad, FEP PTFE Coated Butterfly Control Valve Manufacturer in Hyderabad, Dealer & Distributor of PFA Lined Butterfly Vales, MS PTFE Lined Butterfly Valve Suppliers in Hyderabad, PTFE Lined Butterfly Valve Wholesaler in Telangana, PTFE & PFA Lined Butterfly Valve Dimensions

PTFE Lined Butterfly Valve Specification

Seal Material PTFE/ PFA
Working Pressure 1.6 – 6.4Mpa
Working Temperature -29°C — +180°C
Availabe Size 1/2″-4″,(DN15-DN100)
Available Connection BSP/ BSPT/ NPT/ Flanged/ Welded
Nominal Pressure P10/PN16
Operation Manual,Pneumatic, Electric
Suitable Medium Water,Sewage,Seawater,Gas,Food,Oils,etc
Standards GB9112,DIN2501,BS4504,ISO2084,ANSI125
Applications Water, Oil, Gas,
Nominal Diameter DN40-DN300 handle lever DN350-DN1200 gear box
Operation Temperature -10°C~150°C

Largest PTFE Lined Butterfly Valve Supplier in Hyderabad, Telangana

Bhavesh PTFE Lined Pipe is a leading supplier of PTFE Lined Butterfly Valve in Hyderabad, Telangana, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.

PTFE Seal Butterfly Valve Exporter in Hyderabad, PTFE Lined Butterfly Valve Price Supplier in Telangana, Butterfly Valves Manufacturer in Hyderabad, PTFE Lined Stainless Steel Butterfly Valve in Telangana, FEP PTFE Coated Butterfly Control Valve Traders in Hyderabad, PFA Lined Butterfly Valve Manufacturer in Hyderabad, FEP Lined Butterfly Valve Supplier in Telangana, Lined Butterfly Valve Definition in Hyderabad, Butterfly Valve PTFE Lined Distributor in Telangana, PTFE Lined Butterfly Valve Wholesaler in Hyderabad. SS 304 PTFE Lined Butterfly Valve Distributor in Hyderabad.

Why Choose Bhavesh PTFE Lined Pipe for PTFE Lined Butterfly Valve?

Types of PTFE Lined Butterfly Valve We Offer

PFA Lined Carbon Steel Double Offset Butterfly Valve in Hyderabad
PFA Lined Carbon Steel Double Offset Butterfly Valve

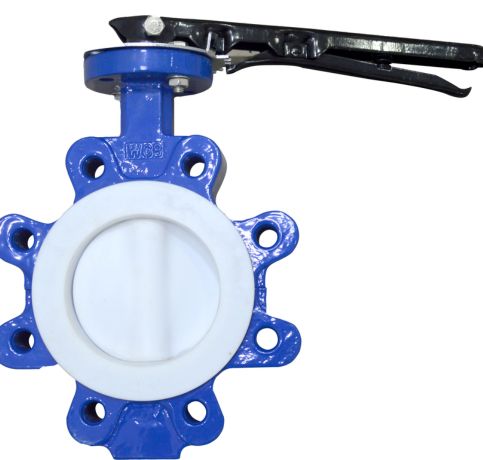

MS PTFE Butterfly Valve in Hyderabad
MS PTFE Butterfly Valve
PTFE Lined Bronze Lug Type Butterfly Valve in Hyderabad
PTFE Lined Bronze Lug Type Butterfly Valve

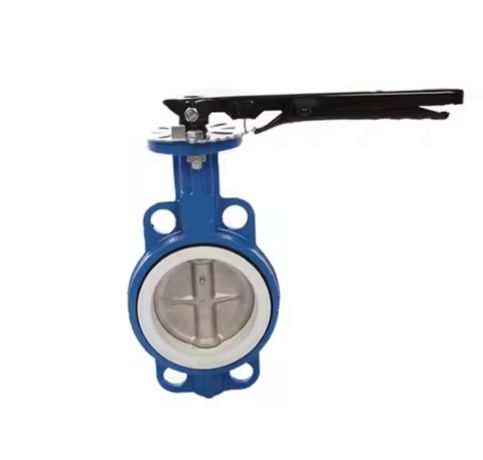

PTFE Seal Butterfly Valve in Hyderabad
PTFE Seal Butterfly Valve
PFA Stainless Steel Wafer Type Butterfly Valve in Hyderabad
PFA Stainless Steel Wafer Type Butterfly Valve
PTFE Coated Butterfly Valve in Hyderabad
PTFE Coated Butterfly Valve

Dimension Chart of PTFE Lined Butterfly Valve

SIZE F/F†(±2) (mm) A (mm) B (mm) L (mm) Min. PipeØ* (mm) C$ (mm) Torque§(N.m)
DN40-1 1/2” 33 90 65 260 26 1.5 15
DN50-2” 43 100 67 260 29 1.5 30
DN65-2 1/2” 46 115 65 260 49 1.5 40
DN80-3” 46 120 80 260 68 1.5 40
DN100-4” 52 158 95 260 88 1.5 50
DN150-6” 58 190 120 325 145 1.5 100
DN200-8” 64 220 162 G.Box 196 3 180
DN250-10” 70 250 200 G.Box 245 3 250
DN300-12” 80 270 232 G.Box 293 3 350
DN350-14” 92 300 255 G.Box 332 3 500
DN400-16” 102 300 290 G.Box 378 3 600
DN450-18” 114 395 310 G.Box 430 3 1200
DN500-20” 127 420 342 G.Box 480 3 1500
DN600-24” 156 510 400 G.Box 572 6 2000

Contact Us for a Quick Quote and Updated Price List

Quality Control Facilities at Bhavesh PTFE Lined Pipe

Benefits of PTFE Lined Butterfly Valve

  • Corrosion Resistance

    The PTFE lining protects against harsh chemicals, making the valve ideal for corrosive applications.

  • Smooth Operation

    The low-friction PTFE surface ensures easy, efficient valve movement with minimal wear.

  • Temperature Resistance

    Performs reliably in extreme temperatures, both hot and cold, without deformation or damage.

  • Low Maintenance

    Requires minimal upkeep due to its durable, self-lubricating PTFE lining, reducing downtime and costs.

FEP Lined Butterfly Valve Exporter in Hyderabad, PFA Coated Lug Type Butterfly Valve Manufacturer in Telangana, PTFE Lined Stainless Steel Butterfly Valve Exporter in Telangana, PTFE Butterfly Valve Stockist in Telangana, Supplier of Comprehensive Range PTFE Line Butterfly Valve in Hyderabad, FEP PTFE Coated Butterfly Control Valve Exporter in Hyderabad, Dealer & Distributor of PFA Lined Valves, SS PTFE Lined Butterfly Valve Suppliers in Hyderabad, PTFE Lined Butterfly Valve Wholesaler in Telangana, PTFE & PFA Lined Butterfly Valve Dimensions, SS 316 PTFE Lined Butterfly Valve Distributor in Hyderabad

Applications of PTFE Butterfly Valve

Chemical Processing Industry
Food Industry
Pulp and Paper Industry
Oil and Gas Industry
Water Treatment Plant
Pharma industry

Frequently Asked Questions (FAQ)

A PTFE lined butterfly valve is a flow control device featuring a disc that rotates and a PTFE lining that resists corrosion in aggressive chemical environments.

Yes, they typically operate efficiently up to 200°C, depending on design, making them suitable for a wide range of thermal and chemical process environments.

PTFE lining provides excellent chemical resistance, non-stick properties, and durability, making it ideal for handling corrosive or reactive fluids in demanding industrial applications.

Yes, PTFE lined butterfly valves are designed to perform reliably at temperatures up to 200°C, depending on their construction, making them ideal for various thermal and chemical processes.

Regularly inspect for wear, ensure proper alignment, and clean the valve to prevent residue buildup; PTFE’s non-stick nature helps reduce frequent maintenance needs.
