PTFE Lined Ball Valve

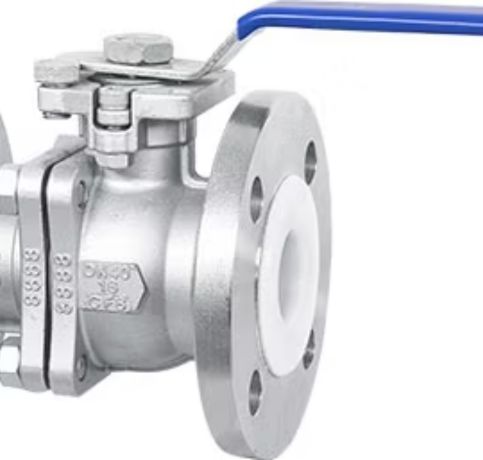

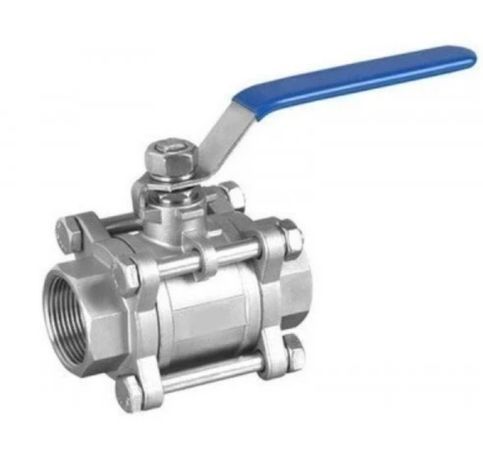

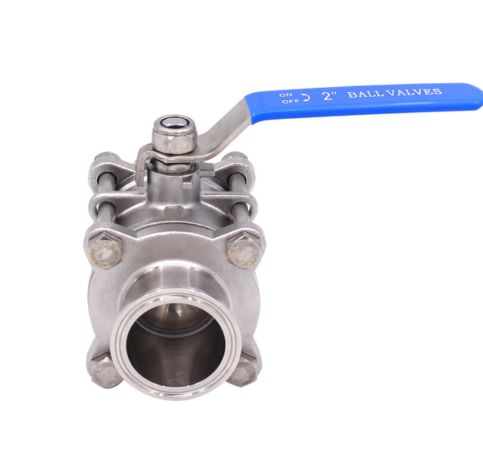

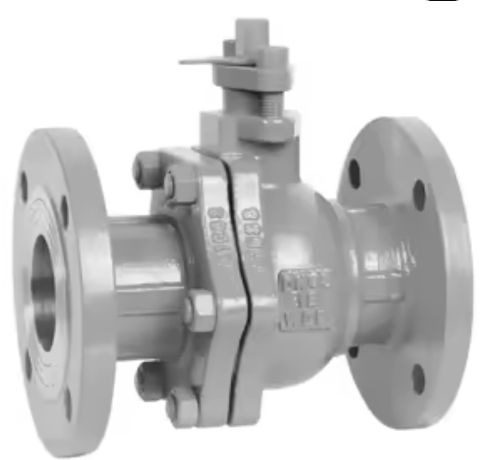

Bhavesh PTFE Lined Pipe, Hyderabad, Hyderabad, is a primary producer and supplier of Ball Valves lined with PTFE, FEP and PFA. Our SS 304 FEP Lined Ball Valves come with anti-static devices, providing increased safety in the form of prevention of electrostatic discharge. The SS 316 PFA Lined Ball Valves are equipped for low torque operations, providing smooth and effective working. These valves also have an anti-blowout stem assembly to avoid stem blowout even without the top gear assembly. Both offerings are encapsulated with high-quality PFA and FEP for high durability and resistance.

SS 304 PTFE Lined Ball Valve Manufacturer in Hyderabad, Perfluoroalkoxy Lined Ball Valve Supplier in Telangana, SS 316 PTFE Lined Ball Valve Exporter in Hyderabad, SS 304 PTFE Lined Ball Valve Stockist in Telangana, Lined valves Distributor in Hyderabad, FEP Lined Ball Valve Manufacturer in Hyderabad, Polypropylene Lined Ball Valve Supplier in Telangana, PTFE Lined Stainless Steel Ball Valve Exporter in Hyderabad, PTFE ball valve Stockist in Telangana, Manufacturer of Comprehensive Range PTFE Line Ball Valve in Hyderabad

What is PTFE Lined Ball Valve?

A PTFE lined ball valve is a valve that has a ball of stainless steel or other material that is covered with a PTFE (Polytetrafluoroethylene) layer. The PTFE lining ensures superior resistance to high temperatures, chemicals, and corrosion and thus such valves are well-suited for applications in industries like food processing, pharmaceutical, and chemical processing. PTFE lined ball valves & check valve guarantee leakproof performance and are very resilient, providing consistent control of fluid flow in extreme conditions.

Largest Stockist of FEP Lined Ball Valve in Hyderabad, PTFE Lined Ball Valve Manufacturer in Telangana, PTFE Lined Ball Valve Price , PTFE Lined Stainless Steel Ball Valve Distributor in Telangana, Polypropylene Lined Ball Valve Stockist in Hyderabad, Teflon PFA Lined Valves Manufacturer in Hyderabad, Dealer & Distributor of PFA Lined Vales, MS PTFE Lined Ball Valve Suppliers in Hyderabad, PTFE Lined Ball Valve Wholesaler in Telangana, PTFE & PFA Lined Ball Valve Dimensions, SS 304 PTFE Lined Ball Valve Distributor in Hyderabad.

PTFE Lined Ball Valve Specification

Size: 25 NB TO 80 NB.

Flange Connection: ANSI B 16.5

Face to Face: ANSI B 16.10

Spark Test: 15 KVA

Hydro Body Test: 15 kg/cm²

Hydro Seat Test: 10 kg/cm²

Leak Test: as per API 598

Temperature: FEP – Max 180°C, PFA – Max 200°C

Largest PTFE Lined Ball Valve Supplier in Hyderabad, Hyderabad

Bhavesh PTFE Lined Pipe is a leading supplier of PTFE Lined Ball Valve in Hyderabad, Hyderabad, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.

PTFE Lined Ball Valve Exporter in Hyderabad, PTFE Lined Ball Valve Price Supplier in Telangana, Ball Valves Manufacturer in Hyderabad, PTFE Lined Stainless Steel Ball Valve in Telangana, Polypropylene Lined Ball Valve Traders in Hyderabad, PFA Lined Ball Valve Manufacturer Manufacturer in Hyderabad, FEP Lined Ball Valve Supplier in Telangana, Lined Ball Valve Definition in Hyderabad, Ball Valve PTFE Lined Distributor in Telangana, PTFE Lined Ball Valve Wholesaler in Hyderabad.

Why Choose Bhavesh PTFE Lined Pipe for PTFE Lined Ball Valve?

Types of PTFE Lined Ball Valve We Offer

Dimension Chart of PTFE Lined Ball Valve

SIZE	L	G	H	WEIGHT
15	108	134	85	2.15 Kg
20	117	133	85	3.10 Kg
25	127	158	95	3.75 Kg
40	165	228	120	6.75 Kg
50	178	228	135	9.75 Kg
80	203	325	165	19.50 Kg
100	229	377	180	31.00 Kg
150	267	548	250	56.00 Kg

Contact Us for a Quick Quote and Updated Price List

Quality Control Facilities at Bhavesh PTFE Lined Pipe

Benefits of PTFE Lined Ball Valve

Excellent Chemical Resistance
Perfect for use in aggressive chemical environments.
Low Friction & Non-Stick Surface
Promotes smooth flow and minimizes material buildup.
High Temperature & Pressure Durability
Handles extreme conditions—up to 260°C and high pressure levels.
Cost-Effective Alternative to Exotic Alloys
Delivers comparable performance at a significantly lower cost.

FEP Lined Ball Valve Exporter in Hyderabad, Polypropylene Lined Ball Valve Manufacturer in Telangana, PTFE Lined Stainless Steel Ball Valve Exporter in Telangana, PTFE ball valve Stockist in Telangana, Supplier of Comprehensive Range PTFE Line Ball Valve in Hyderabad, Teflon PFA Lined Valves Exporter in Hyderabad, Dealer & Distributor of PFA Lined Vales, MS PTFE Lined Ball Valve Suppliers in Hyderabad, PTFE Lined Ball Valve Wholesaler in Telangana, PTFE & PFA Lined Ball Valve Dimensions, SS 304 PTFE Lined Ball Valve Distributor in Hyderabad

Applications of PTFE Lined Ball Valve

Frequently Asked Questions (FAQ)

What is a PTFE lined ball valve?

A PTFE lined ball valve is designed with a corrosion-resistant PTFE lining, ideal for controlling flow in highly corrosive environments like chemical plants, pharmaceuticals, and wastewater treatment systems.

What temperature and pressure can PTFE lined ball valves handle?

These valves typically withstand temperatures up to 260°C and moderate to high pressures, offering reliable performance in demanding applications involving aggressive chemicals or high thermal conditions.

Why choose PTFE lined ball valves over metal ones?

PTFE lined valves resist corrosion, reduce friction, and prevent contamination. They are cost-effective for handling aggressive chemicals, unlike exotic alloys that are more expensive and less adaptable.

In which industries are PTFE lined ball valves commonly used?

They are widely used in chemical processing, pharmaceuticals, food and beverage, and water treatment industries where chemical resistance, cleanliness, and long service life are critical.

Can PTFE lined ball valves handle abrasive materials?

PTFE lined valves are not ideal for abrasive media, as the soft lining can wear down. Alternative materials or reinforcements are better suited for handling solid-laden or abrasive fluids.
