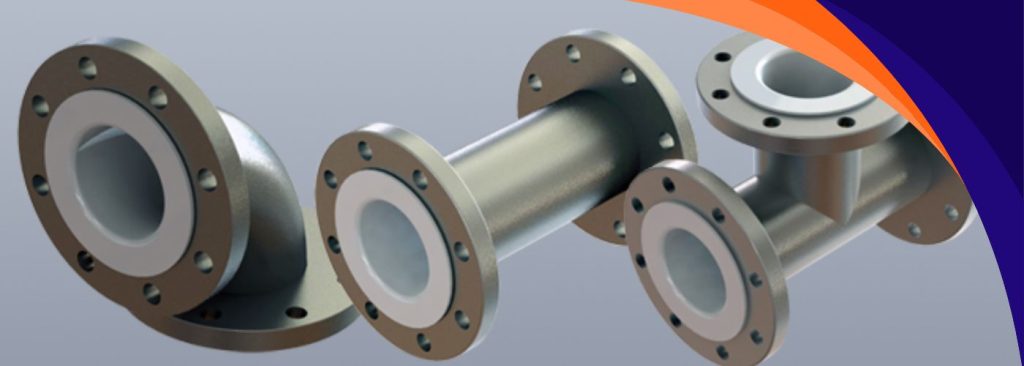

Bhavesh PTFE Lined Pipe is a reliable manufacturer and supplier of superior quality PTFE Lined Cross fittings. For application in harsh industrial environments. Based in Hyderabad we provide a variety of FEP, PFA and PTFE lined fittings. Our PTFE Lined Cross fittings are made to withstand corrosive chemicals and high temperatures providing long-lasting performance. With excellent chemical resistance, rugged construction and smooth internal surfaces these fittings provide assured direction of flow and can be found in special options to meet different needs of processes.

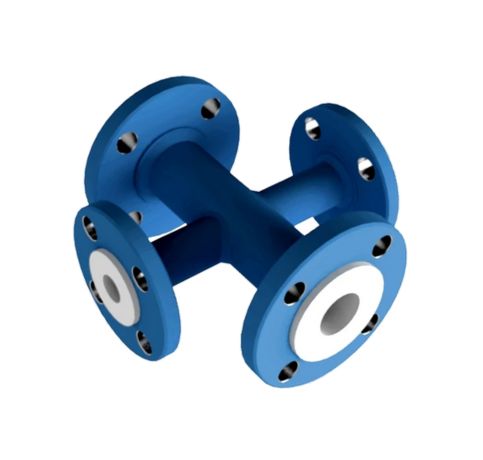

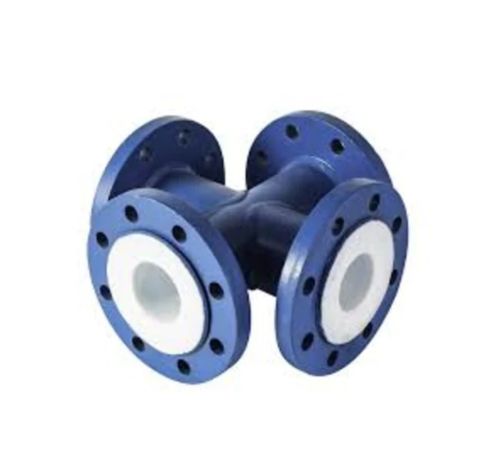

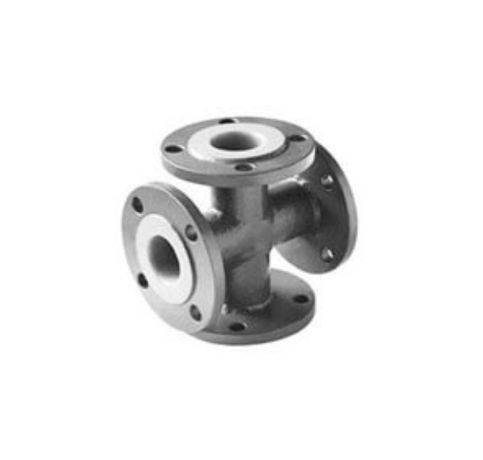

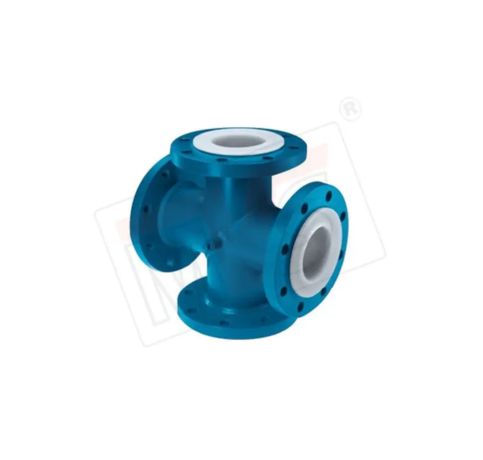

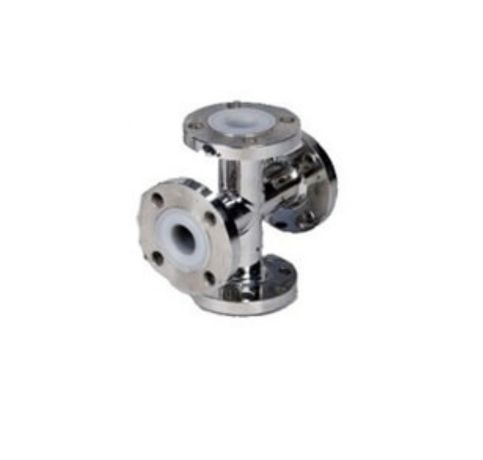

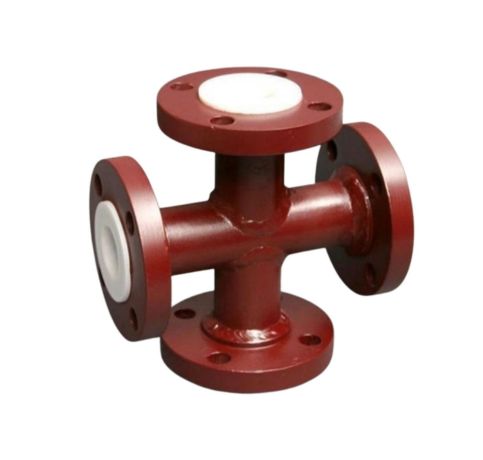

A PTFE Lined Cross is a four-way pipe fitting applied to join pipelines at right angles, enabling fluids to flow in more than one direction. PTFE lining provides complete protection from corrosion, heat, and harsh chemicals. This makes it suitable for applications such as chemical processing, pharmaceutical and petrochemical. Where cleanliness and dependability are critical. Leak-free technology and smooth internal flow enable consistent distribution at intersections of pipelines, facilitating safe and efficient operations.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C
PP Max Temp : 100° C
PFA Max Temp : 200° C
Bhavesh PTFE Lined Pipe is a leading supplier of PTFE Lined Cross in Hyderabad, Telangana , offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| NB | L | FLG. | RF | PCD | App. | App. | LINER THK | N x M | WEIGHTS | |
|---|---|---|---|---|---|---|---|---|---|---|
| O / D | O / D | T1 | T1 | Vaccume (T) | Non Vacc (T) | (kg/piece) | ||||
| 1/2″ | —- | 89 | 35.1 | 60.5 | 14.2 | 24.2 | 3.0 | 3.0 | 4 x 1/2″ | 4 |
| 3/4″ | —- | 98 | 42.9 | 69.9 | 15.7 | 27.7 | 3.0 | 3.0 | 4 x 1/2″ | 3.5 |
| 1″ | 89 | 108 | 50.8 | 79.2 | 17.2 | 29.2 | 4.0 | 3.0 | 4 x 1/2″ | 5.5 |
| 1 1/4″ | 95 | 118 | 63.5 | 88.9 | 18.7 | 30.2 | 4.0 | 3.0 | 4 x 1/2″ | 7.7 |
| 1 1/2″ | 102 | 127 | 73.2 | 98.6 | 20.5 | 32.5 | 4.0 | 3.0 | 4 x 1/2″ | 8.7 |
| 2″ | 114 | 152 | 91.9 | 120.7 | 22.1 | 37.1 | 4.0 | 3.0 | 4 x 1/2″ | 14.0 |
| 2 1/2″ | 127 | 178 | 104.6 | 139.7 | 25.4 | 40.4 | 4.0 | 3.0 | 4 x 5/8″ | 20.6 |
| 3″ | 140 | 191 | 127.0 | 152.4 | 27.9 | 42.9 | 4.0 | 3.0 | 4 x 5/8″ | 24.8 |
| 4″ | 165 | 229 | 157.2 | 190.5 | 28.9 | 43.9 | 4.5 | 3.0 | 8 x 5/8″ | 39.1 |
| 5″ | 190 | 254 | 185.7 | 215.9 | 28.9 | 43.9 | 6.0 | 5.0 | 8 x 3/4″ | 68.8 |
| 6″ | 203 | 279 | 215.9 | 241.3 | 30.4 | 45.4 | 6.0 | 5.0 | 8 x 3/4″ | 79.5 |
| 8″ | 229 | 343 | 269.7 | 298.5 | 33.4 | 48.4 | 6.0 | 5.0 | 8 x 3/4″ | 99.0 |
| 10″ | 280 | 406 | 323.9 | 362.0 | 35.7 | 50.7 | 7.5 | 5.0 | 12 x 7/8″ | 160.0 |
| 12″ | 305 | 483 | 381.0 | 431.8 | 37.8 | 52.8 | 7.5 | 5.0 | 12 x 7/8″ | 280.0 |
Withstands harsh acids and solvents.
Prevents fluid leakage at joints.
Suitable for extreme process heat.
Tailored to fit system specifications.
Yes, they are compatible with a broad range of corrosive fluids including acids, alkalis, solvents, and other harsh chemicals.
For correct installation, use the right gaskets, follow the specified torque values, and ensure proper flange alignment. This will help prevent stress or damage to the PTFE lining and ensure a secure, leak-proof connection.
Unlike regular metal fittings, PTFE Lined Crosses are designed to resist chemical corrosion and prevent contamination when handling aggressive or reactive media.
Standard sizes range from 25mm to 300mm NB. However, custom sizes can be produced to meet specific application needs.
Yes, PTFE lining is heat-resistant and can typically withstand temperatures up to 260°C, making it ideal for high-temperature industrial processes.
