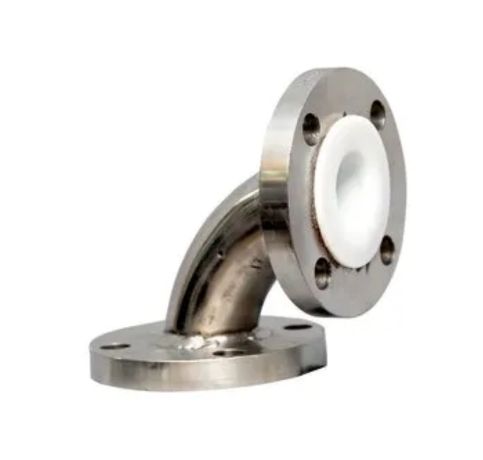

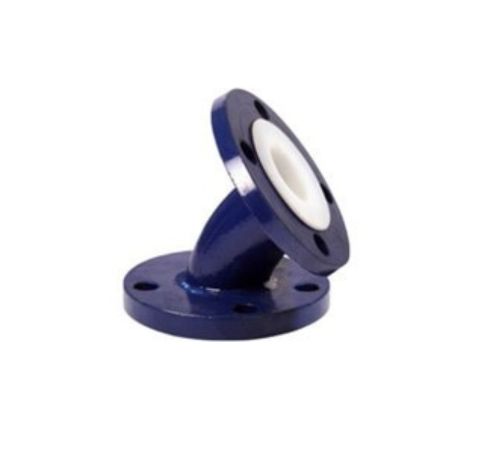

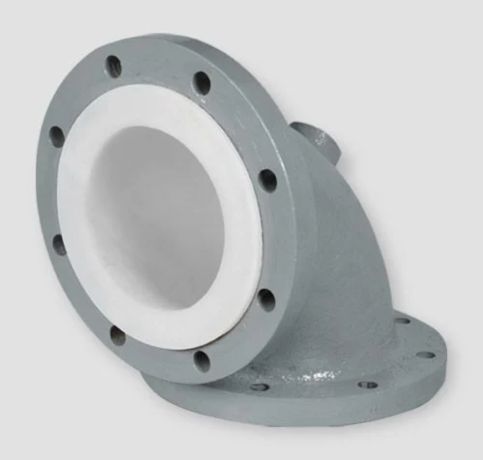

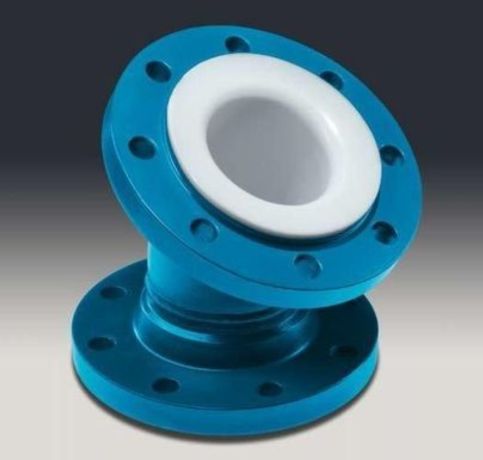

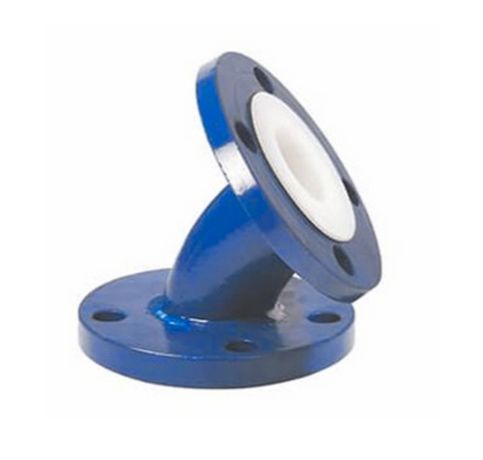

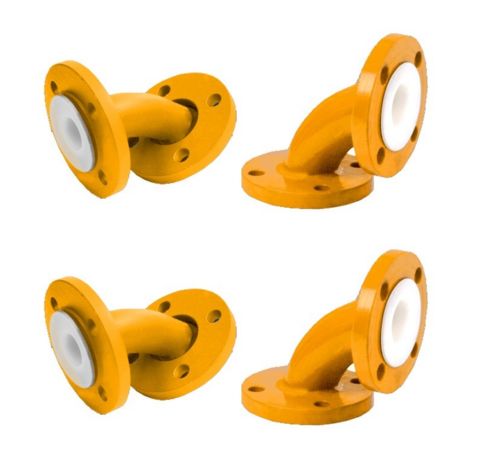

Bhavesh PTFE Lined Pipe is a reliable manufacturer and supplier of PTFE, FEP, and PFA lined elbows, with its headquarters in Hyderabad. Our PTFE lined elbows are designed to work reliably in corrosive and high-temperature conditions. These fittings are available in 45-degree and 90-degree angles and serve to redirect flow smoothly while providing superior resistance to chemicals and robust mechanical strength. We supply high-quality and durable elbows. With a precise finish to meet diverse industrial applications. Every product is carefully manufactured in-house, to guarantee consistent, leak-free performance even under harsh conditions.
A PTFE lined elbow is a unique form of pipe fitting to alter the direction of flow in pipelines that handle corrosive or ultra-pure fluids. It has a hard outer casing made of stainless steel or carbon steel, with PTFE inner lining. It shields against chemical attack and the accumulation of materials. PTFE lined elbows are widely employed in chemical manufacturing, pharmaceutical, food processing, and water treatment industries. They provide smooth flow of fluid, are resistant to contamination, and sustain performance despite exposure to extreme chemicals and extreme heat.
Size : 25 NB to 300 NB
Flanges Used : ASTM A 105/IS 2062/SS 304/SS 316
Hydro Test : at 29.8 Kg/cm2
Spark Test : 15 KVA
Outer body : ASTM A 234 Gr WPB SCH-40/SS 304/SS 316
Lining : PFA
Bhavesh PTFE Lined Pipe is a leading supplier of PTFE Lined Elbow in Hyderabad, Telangana, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
NB | ID | RF | OD | PCD | No.Of Holes x Dia Of Holes | Lining Thickness Standard | Lining Thickness Full Vacuum | Length Max. |
| 15 | 10.80 | 34.90 | 88.9 | 60.3 | 4×15.9 | 3.0 | 3.1 | 3000 |
| 20 | 16.00 | 42.70 | 98.4 | 69.8 | 4X15.9 | 3.0 | 3.1 | 3000 |
| 25 | 20.15 | 50.80 | 108.0 | 79.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 40 | 33.90 | 73.00 | 127.0 | 98.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 50 | 45.50 | 92.10 | 152.4 | 120.7 | 4X19 | 3.5 | 4.6 | 3000 |
| 65 | 55.68 | 104.80 | 177.8 | 139.7 | 4×19 | 3.5 | 4.8 | 3000 |
| 80 | 70.90 | 127.00 | 190.5 | 152.4 | 4X19 | 3.5 | 5.0 | 3000 |
| 100 | 94.30 | 157.20 | 228.6 | 190.5 | 8X19 | 4.0 | 5.8 | 3000 |
| 150 | 114.10 | 215.90 | 279.5 | 241.3 | 8X22.2 | 5.0 | 6.8 | 3000 |
| 200 | 195.10 | 269.90 | 342.9 | 298.5 | 8X22.2 | 5.0 | 7.9 | 2000 |
| 250 | 247.40 | 323.90 | 406.4 | 362.0 | 12X25.4 | 5.0 | 8.8 | 2000 |
| 300 | 297.00 | 381.00 | 482.6 | 431.8 | 12X25.4 | 5.0 | 9.0 | **** |
Ensures secure and safe flow direction
Performs reliably in elevated heat conditions.
Minimizes turbulence and pressure drop
Handles aggressive chemicals without degradation.
Yes, fully customized PTFE lined elbows are available, including specific sizes, bend angles, and lining thicknesses to suit various application needs.
Absolutely. PTFE is non-toxic and hygienic, making it safe for use in food, beverage, and pharmaceutical industries.
Yes, these elbows can tolerate temperatures up to 230°C, depending on the system’s pressure and operating conditions.
They are offered in both standard and custom sizes, typically ranging from 1 inch to 12 inches or larger upon request.
PTFE lined elbows are used to change the direction of flow in piping systems handling corrosive or reactive fluids, while resisting chemical attack, pressure, and temperature changes.
